Installation Test
Placement: Place the robotic lawn mower within the working area close to the charging station.

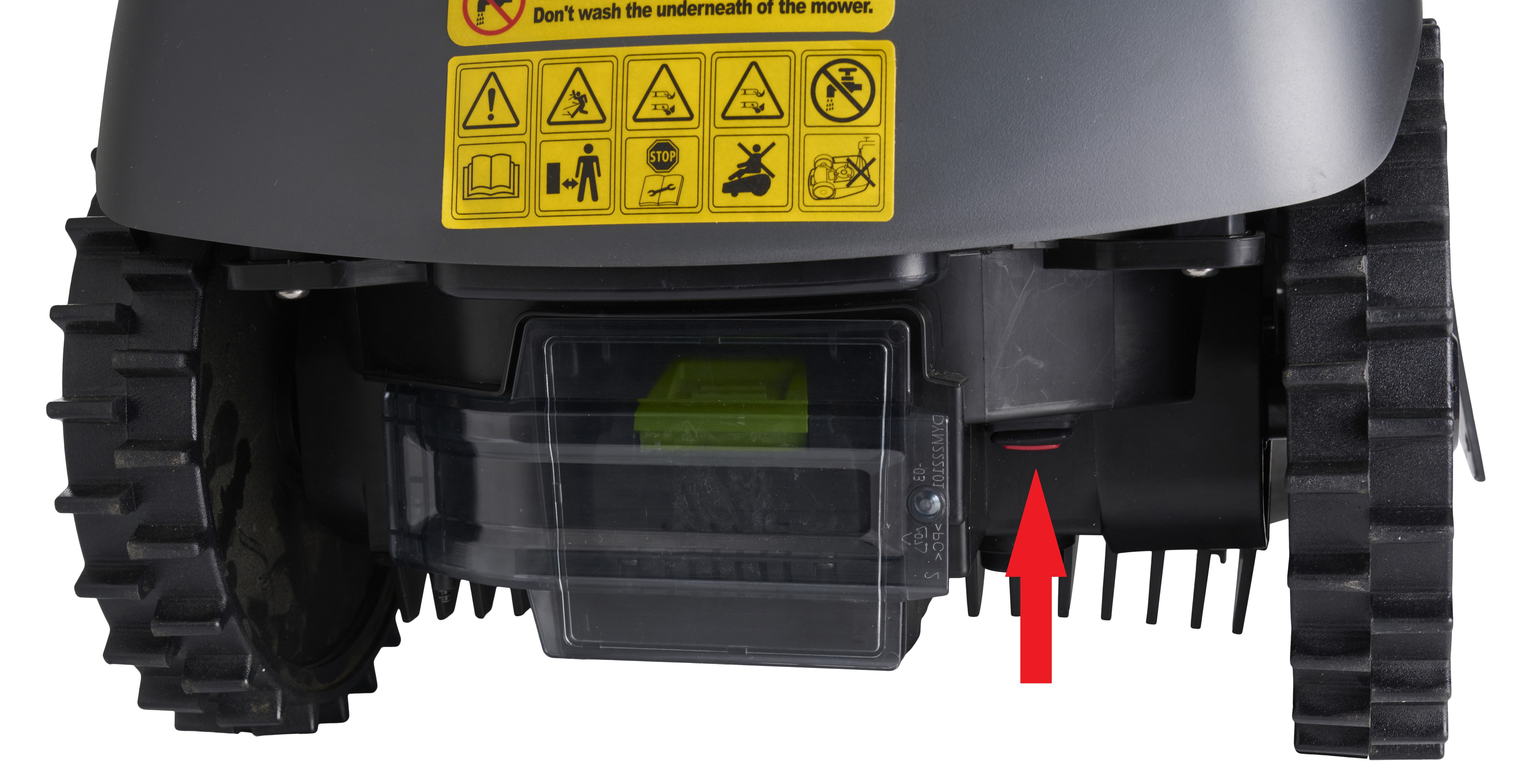

Powering On: Press the main switch on the underside of the robotic lawn mower to the ON position.
Activation: Press and hold the power button for about 3 seconds until the robotic lawn mower powers on.

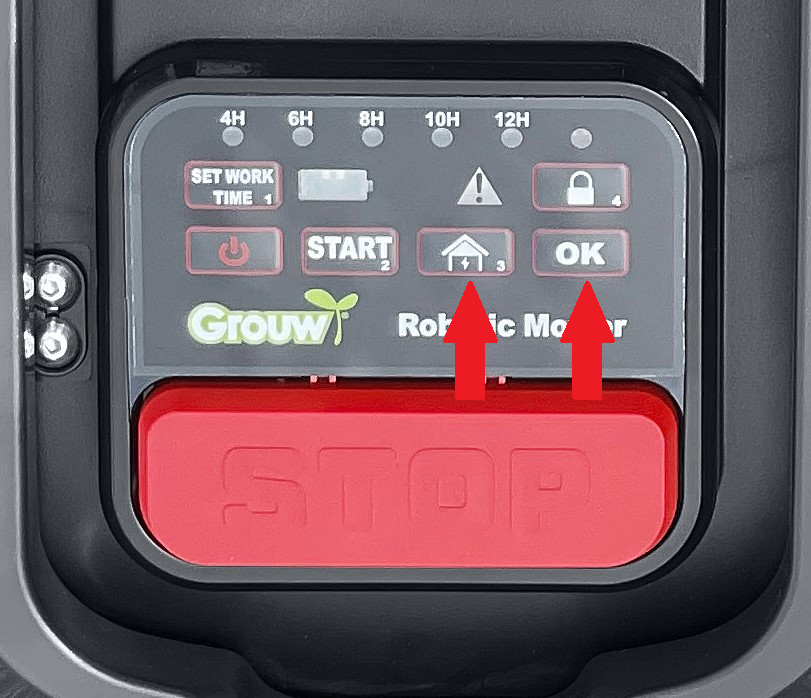

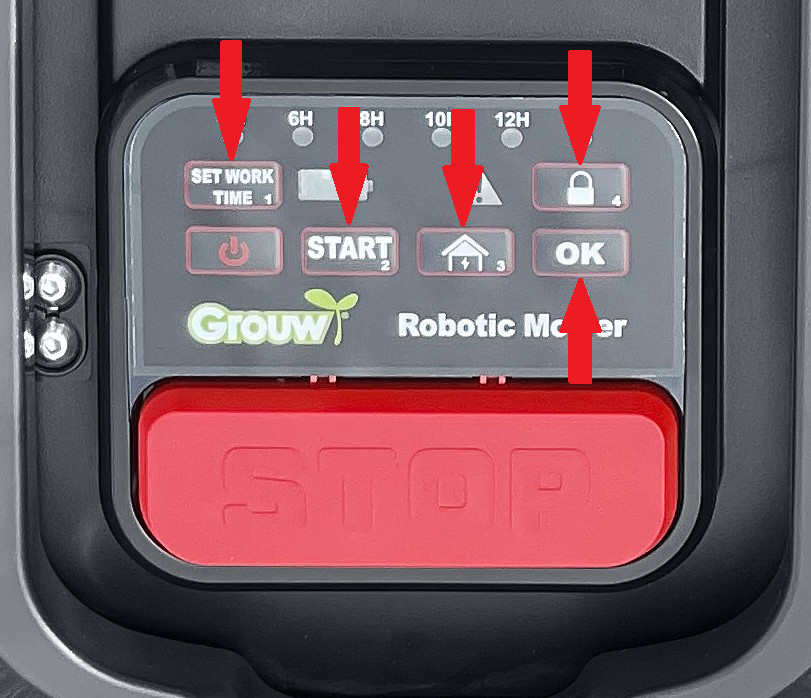

PIN Code: Enter the PIN code (1-2-3-4) and press “OK”. Then press “HOME” and “OK”.
Return to Charging Station: The robotic lawn mower follows the boundary wire back to the charging station.
Check: Ensure that the robotic lawn mower drives correctly onto the charging station and starts charging. Adjust the charging station if necessary.
Automatic Return to Charging Station:
- When you press the “HOME” and “OK” buttons.
- When the battery level is below 30%.
- If the temperature in the built-in control circuit becomes too high.
- The control light will be red during charging and green when fully charged. The robotic lawn mower will start again according to how it is programmed.
Overheating Protection:
- Charging is interrupted if the battery temperature exceeds 45 °C and resumes when the temperature has dropped.
Manual Charging:
- If the robotic lawn mower runs out of power before it reaches the charging station, perform a manual charging.
See the user manual for more details on programming and manual charging.
