Start and stop the robotic lawn mower:
Set the main switch to the “ON” position, which is when the button is pressed up in the machine.
Hold the “POWER” button down (red circle in the image). The on/locked indicator light will glow red (yellow circle in the image), and the battery and error indicator lights will flash alternately (blue circle in the image). The robotic lawn mower is ready after approximately 4 seconds.

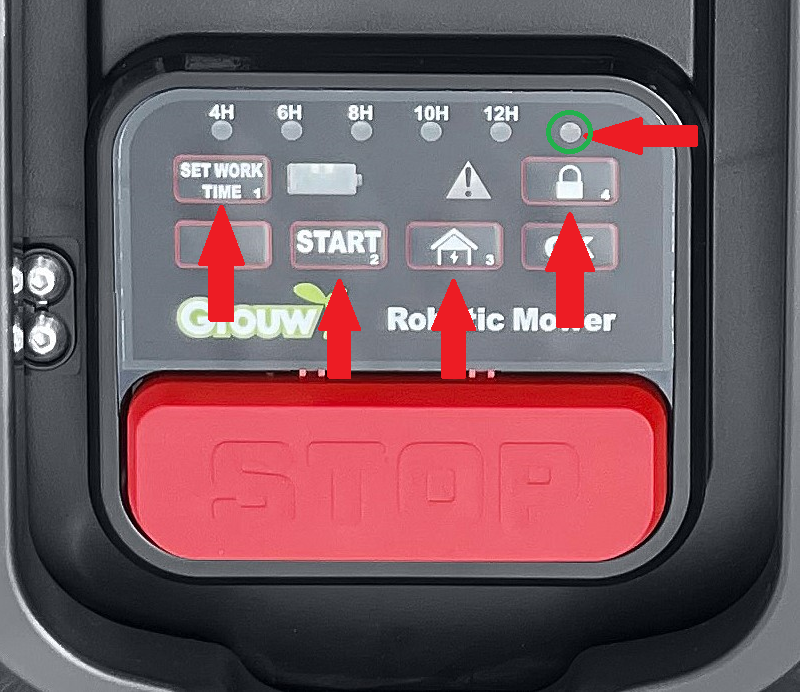

Enter the four-digit PIN code using the “1-4” buttons, and then press the “OK” button to unlock the control panel. If you have entered the correct PIN code, the on/locked indicator light will glow green. If you have entered an incorrect PIN code, the on/locked indicator light will flash red. Enter the correct PIN code. Press the “OK” button.
Note! The PIN code is factory set to the combination 1-2-3-4. You can create your own PIN code - see the section - Change PIN code in the manual.

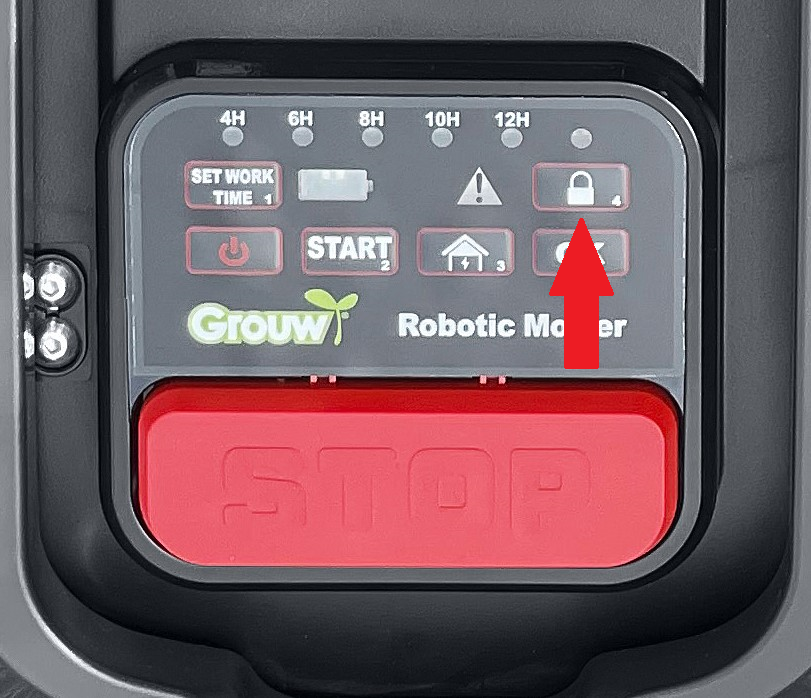

If you want to lock the control panel, press the “LOCK/4” button.

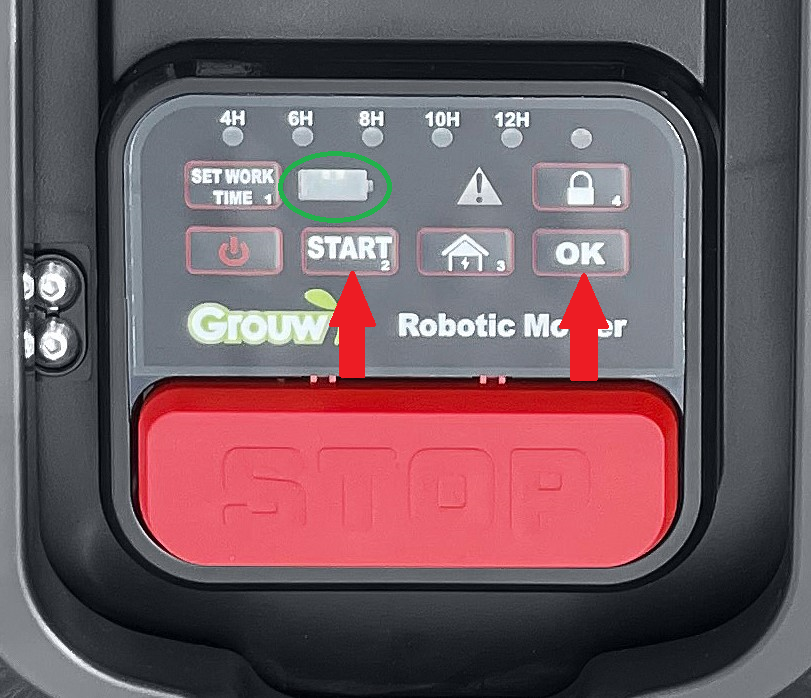

Press the “START/2” button, and then press the “OK” button. If the battery level is above 30%, the battery indicator light will glow green, and the robotic lawn mower will start mowing the lawn.

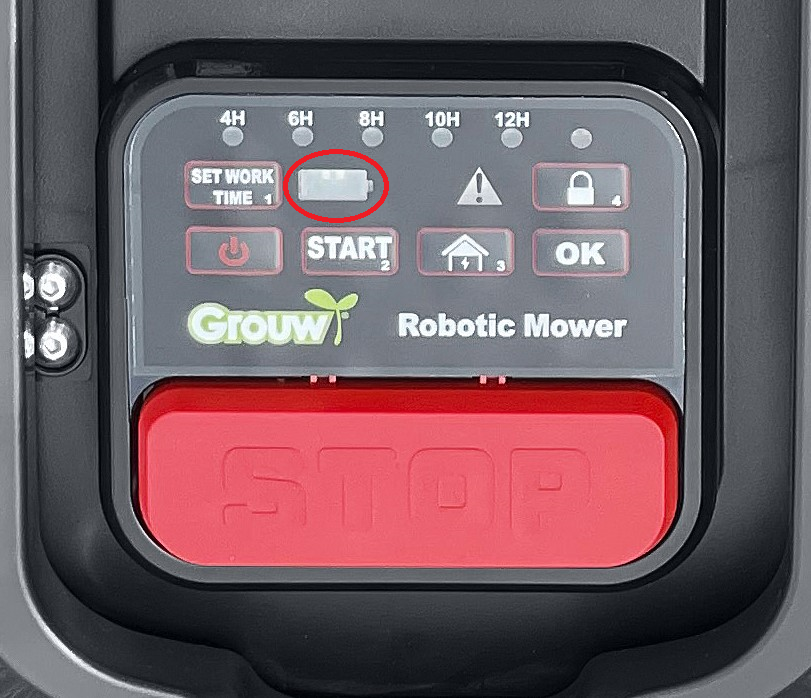

If the battery level is at 30% or lower, the battery indicator light will glow red, and the robotic lawn mower will automatically return to the charging station along the boundary wire.

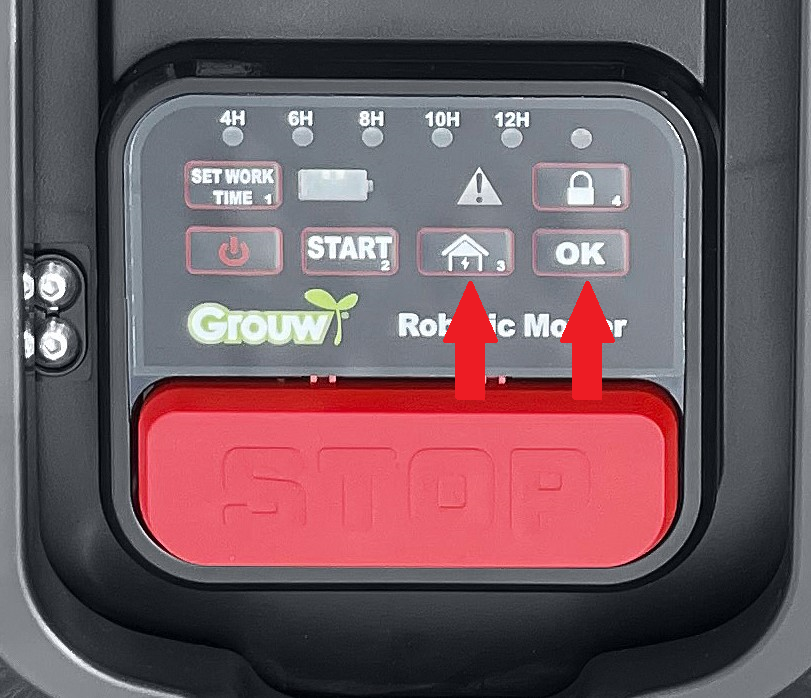

If you press the “HOME/3” button and then press the “OK” button, the robotic lawn mower will return to the charging station, regardless of the remaining battery capacity. If it is within the mowing time, it will charge and go out again. If you press the red STOP button, the robotic lawn mower will stop immediately.
