Cleaning and Replacement of Spare Parts for the Robotic Lawn Mower
Cleaning:

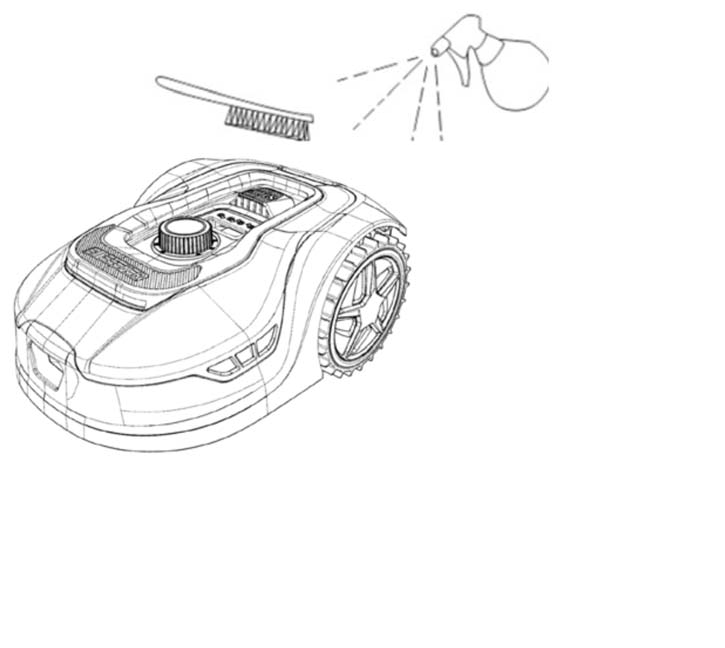

- Plastic Shields:
- Use a soft brush to remove grass and dirt.
- Use a water spray or damp cloth if necessary.
- Avoid using a pressure washer to protect electronics and battery.
- Underside:
- Wear work gloves.
- Clean at least once a month, especially the blades.
- Turn off the robot first.
- Lay the robot on its side on a soft surface.
- Use a soft brush or plastic scraper to remove grass.
- Check that the blades and front wheel can rotate freely.
- Charging Station:
- Clean the charging station regularly.
- Remove grass and dirt from the cutting disc.
- Trim the grass around the charging station with a strimmer.
- Check and clean the charging contacts every two months with fine sandpaper or steel wool.

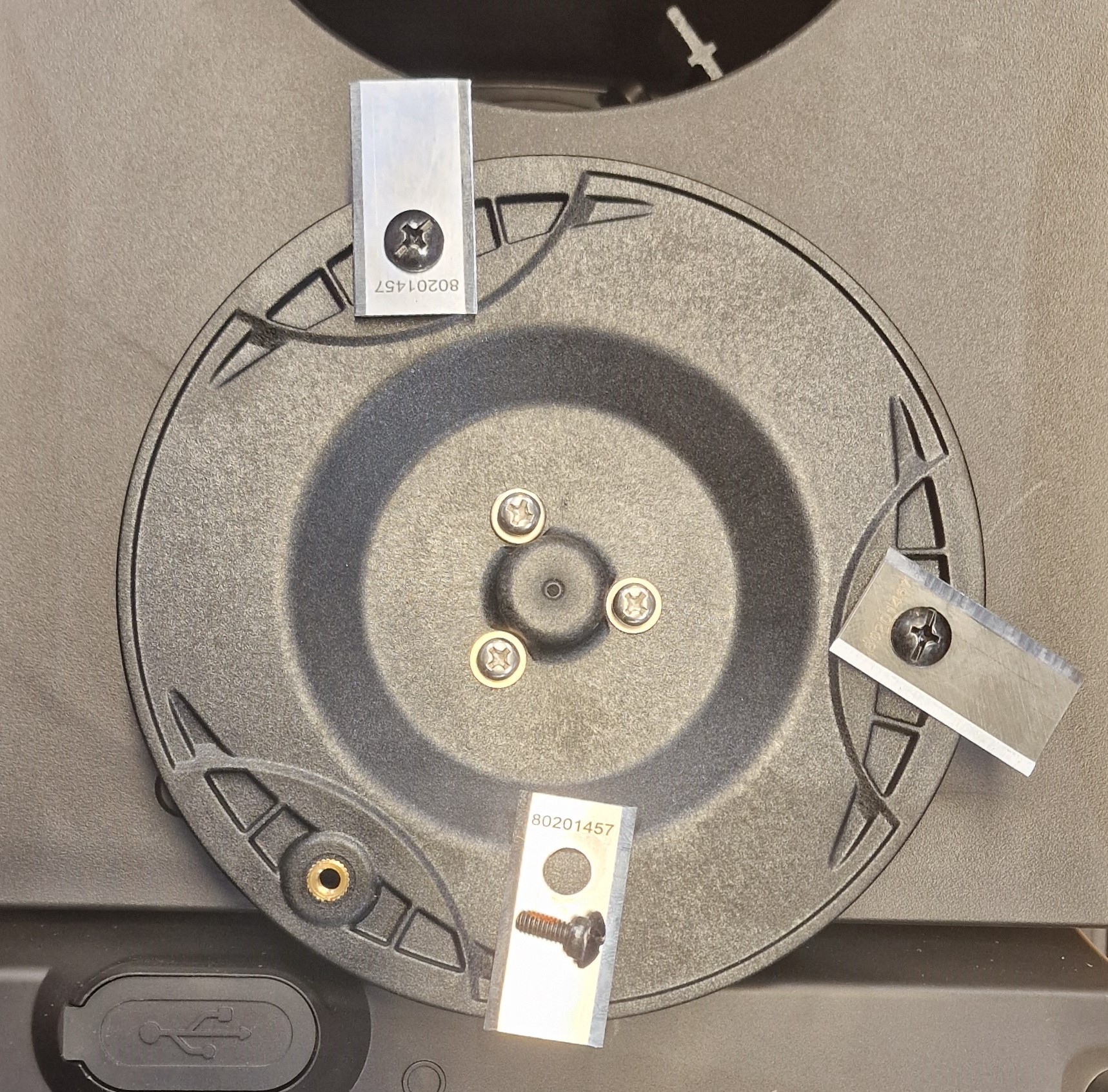

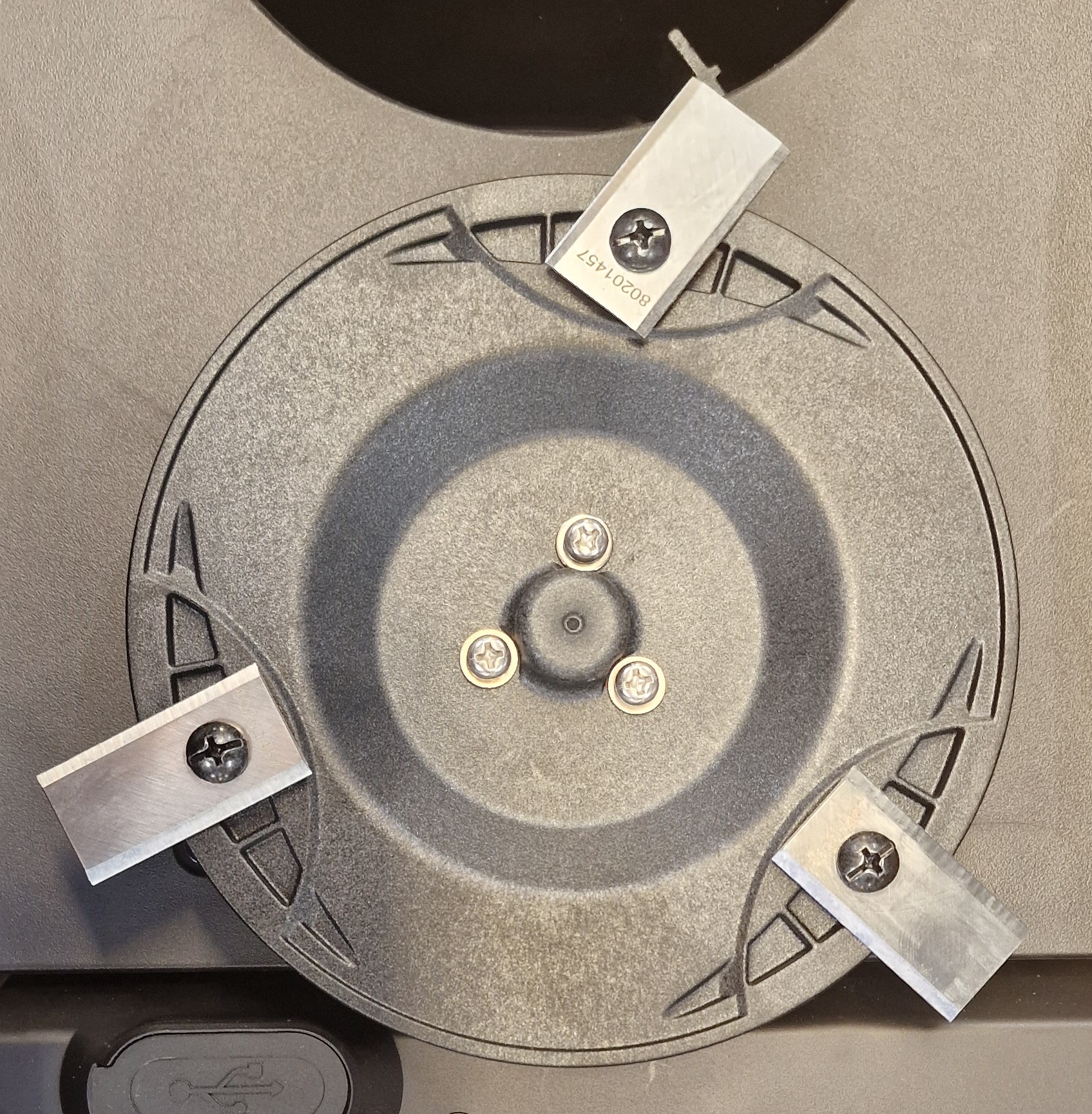

Replacement of Blades:
- Replace all blades and screws after each season or more often if necessary.
- Use a star screwdriver.
- Turn off the robot before replacement.
- Loosen the screw, remove dirt and grass residues.
- Replace the blades with new ones and tighten the screws properly.
- Change all 3 blades at the same time to avoid imbalance.
- Check the blade screws by rotation.
Important:
- Regular cleaning is essential for optimal function.
- Problems caused by lack of cleaning are not covered by the warranty.
- Only use original blades.
