HANDLING OF THE ROBOT LAWNMOWER

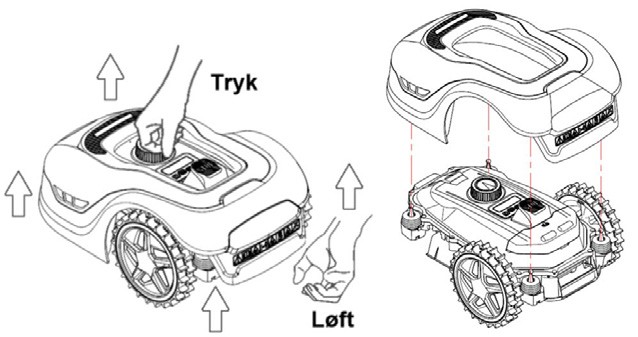

Removing the Cover
The upper cover can be removed as needed. Please follow this procedure:
- Press down on the robot's height adjustment button.
- Grip the underside of the shield at one of the rear corners and pull upwards until it loosens.
- Repeat at the opposite rear corner and lift until it releases.
- Perform the same process for the two front corners (one at a time).
- Once the cover is released, it can be completely removed (there are no wires securing it).
Attaching the Cover
- Place the cover on top of the robot lawnmower. Look through the hole above the display and ensure that the holes in both rear corners align with the 2 pins on the robot.
- Secure the cover onto the pins (one at a time) by pressing down on the cover directly above the pins.
- Repeat the procedure for the 2 pins at the front of the robot (one at a time).
Transporting and Moving the Robot
- Use the carrying handle under the rear end of the robot to lift and carry the robot.
- Do not carry it by the edge of the cover, as the upper cover may loosen, which could cause the robot to fall to the ground.
- It is recommended to transport robot lawnmowers in the original packaging over long distances. The packaging is also suitable for winter storage of the robot.
- When the robot needs to be moved away from the mowing area or adjusted, activate the large red STOP button.
- When the STOP button is activated, the robot should be turned off by holding the OFF button down until the display turns off.
