Manual Setting of Working Time - Grouw S600

Updated

Manual setting of the daily working time:

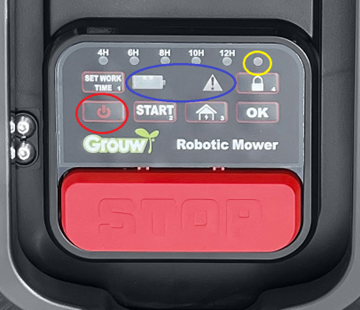

Turn on the robotic lawn mower:

  • Press the "POWER" button inside (red circle in the image).
  • The power/lock indicator lights up red (yellow circle in the image).
  • The battery and error indicators blink alternately (blue circle in the image).
  • The robotic lawn mower is ready after about 4 seconds.

Manuel indstilling af arbejdstid 1.png

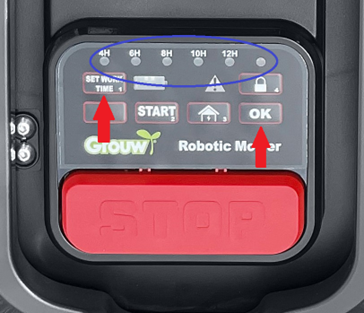

Set working time:

  •
    •
      • Enter the PIN code and press "OK".
      • Press the "SET WORK TIME" button one or more times to select working time (4, 6, 8, 10 or 12 hours).
      • Press "OK" to confirm the settings.

Manuel indstilling af arbejdstid 2.png

Start the robotic lawn mower:

  •
    •
      • Press the "START" button followed by "OK"
      • The robotic lawn mower starts mowing and continues for the selected number of hours.
      • Mowing starts over each day at the same time as the first time.
      • Recommended start time is 9 in the morning to avoid dew on the lawn.

Manuel indstilling af arbejdstid 3.png



Recommended daily working time:

  • 300 m² lawn: 4 hours
  • 500 m² lawn: 6 hours

You can change the start time by repeating the above steps at the desired time.
