Change PIN code

1. Turn on the robotic lawn mower, enter your current PIN code and ensure that the power/lock indicator light is green. This indicates that the mower is ready to receive new commands.

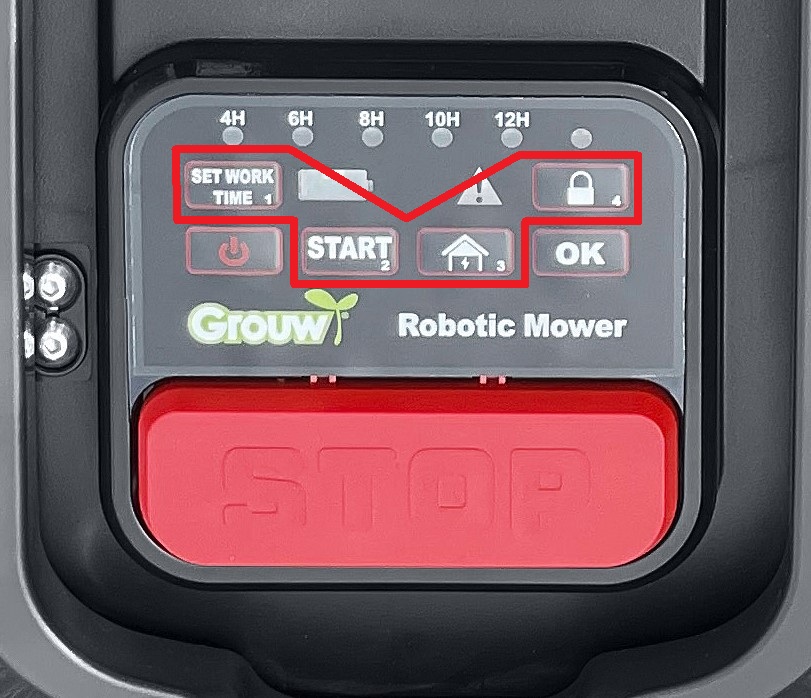

2. Press the “LOCK/4” and “OK” buttons simultaneously. When you do this, the power/lock indicator light will start to flash alternately green and red, which means that a new PIN code can be entered.

1. Enter a new optional 4-digit PIN code using the “1-4” buttons, and then press the “OK” button. The indicator light will flash green to indicate that the first entry has been received correctly.

1. Enter the same PIN code again to confirm, and press the “OK” button. When the power/lock indicator light is green without flashing, it means that the PIN code has been changed and saved correctly.
2. Remember that the PIN code is an important part of the theft protection! If you forget the PIN code, you will not be able to unlock the control panel and use the robotic lawn mower. In case you forget the PIN code, you can visit our website www.schou.com and follow the instructions to obtain a new PIN code.

- This guide applies to the following models:

17935 Grouw    600

17936 Grouw    900

17937 Grouw    1200

17940 Grouw   S600

17945  Grouw  S400

17946  Grouw  S500
