Installation Test
Placement: Place the robotic lawn mower within the working area close to the charging station.

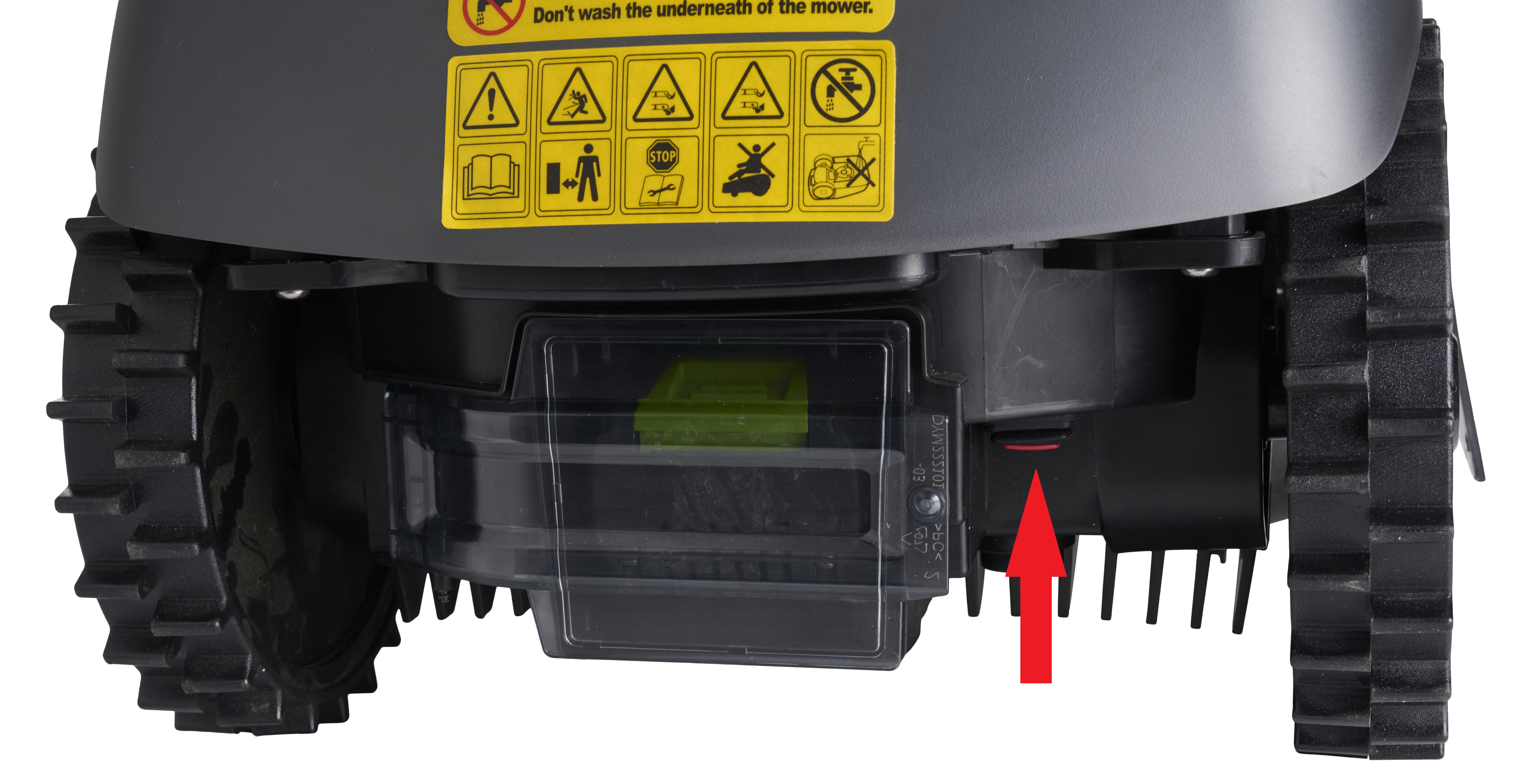

Powering On: Press the main switch on the underside of the robotic lawn mower to the ON position.
Activation: Hold down the power button for about 3 seconds until the robotic lawn mower turns on.

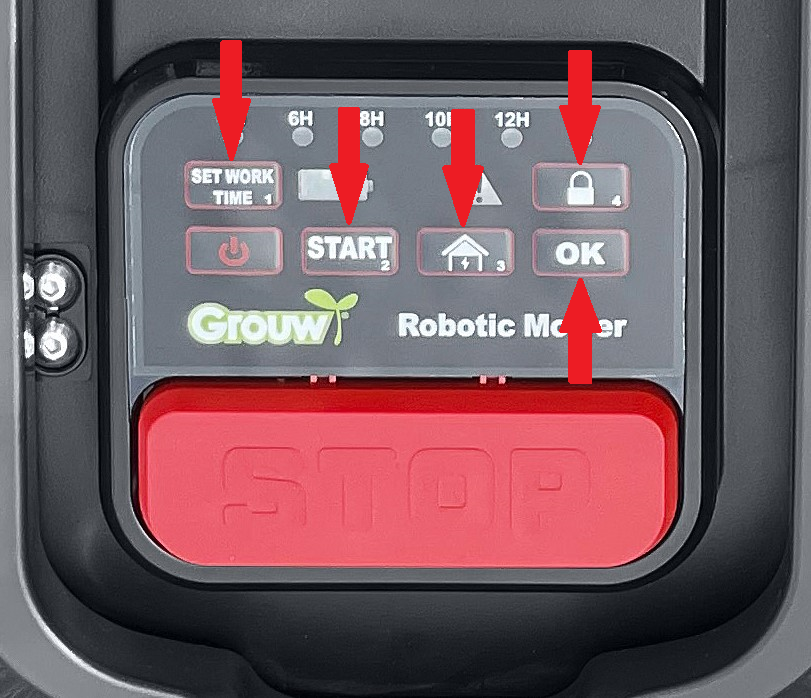

PIN Code: Enter the PIN code (1-2-3-4) and press "OK". Then press "HOME" and "OK".
Return to Charging Station: The robotic lawn mower follows the boundary wire back to the charging station.
Check: Ensure that the robotic lawn mower correctly drives onto the charging station and begins charging. Adjust the charging station if necessary.
Automatic Return to Charging Station:

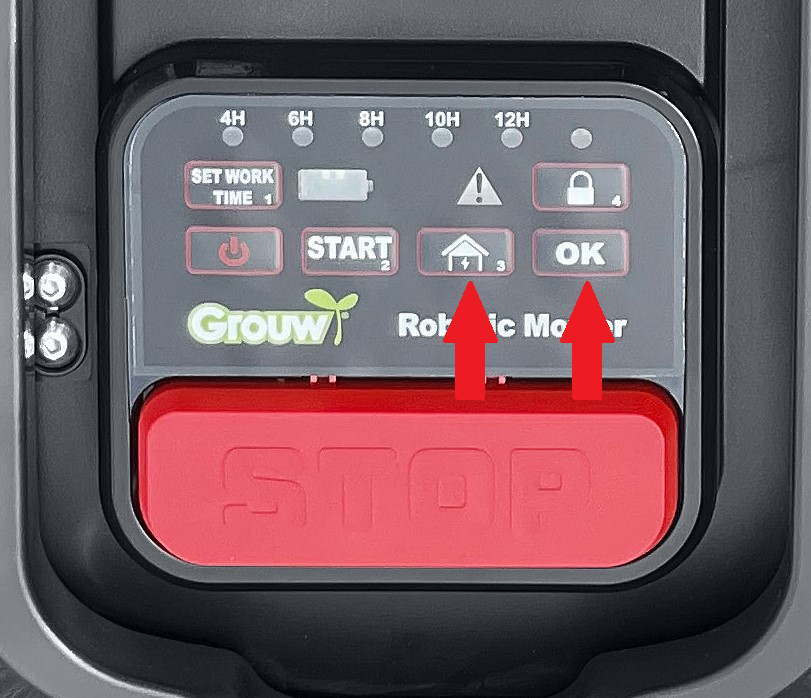

- When you press the "HOME" and "OK" buttons.
- When the battery level is below 30%.
- If the temperature in the built-in control circuit becomes too high.
- The control light shines red during charging and green when fully charged. The robotic lawn mower will start again according to how it has been programmed.
Overheating Protection:
- Charging is interrupted if the battery temperature exceeds 45 °C and resumes when the temperature has dropped.
Manual Charging:
- If the robotic lawn mower runs out of power before it reaches the charging station, manual charging must be performed.
Refer to the user manual for more details on programming and manual charging.
