Error with the shield

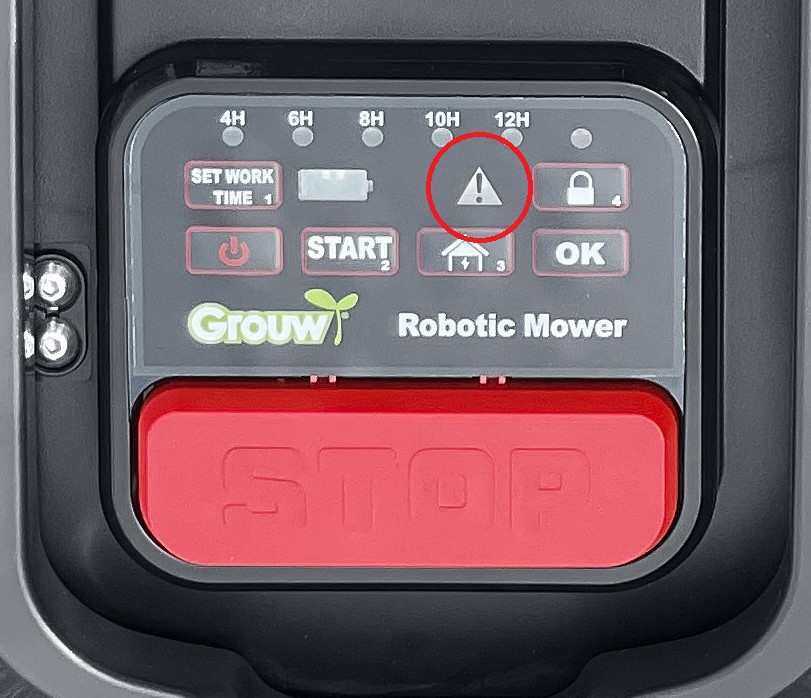

1. When this warning triangle lights up red, it may mean that the lawn mower has been lifted or is stuck. Ensure that the lawn mower is on a level surface and is not blocked by anything.

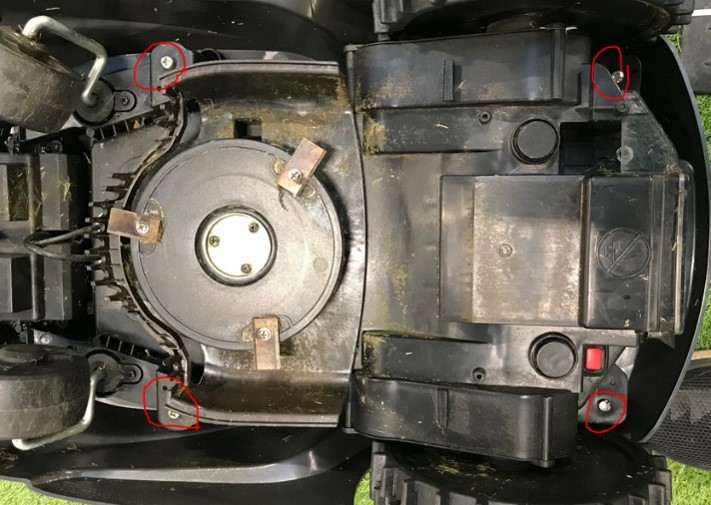

2. Use a screwdriver to remove the four screws that hold the shield in place.

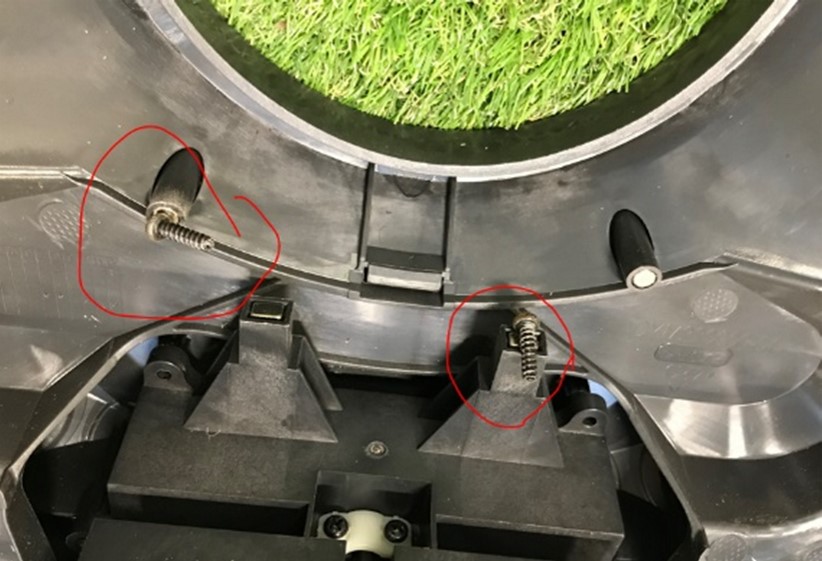

3. Once the shield is removed, inspect the area for any metal objects such as screws or other small parts that may have fallen onto the bump sensor magnets. These can interfere with the lawn mower's operation.
Remove any foreign objects and ensure that the magnets and sensors are clean and free from dirt.
4. After you have checked and cleaned the area, replace the shield and secure it with the four screws.
- This guide applies to the following models:
17919 - Garden 1200m2 App Control
17923 - Garden 800m2 App Control
68059 - Adano 800WL
68130 - Adano 801WL
17935 - Grouw 600 App control
17936 - Grouw 900 App control
17937 - Grouw 1200 App control
17940 - Grouw S600
17941 - Grouw M900 App control
17945 - Grouw S400
17946 - Grouw S500 App control
17947 - Grouw L1200 App Control
17948 - Grouw M800 App Control
17949 - Grouw M600
