Start and stop the robotic lawn mower:

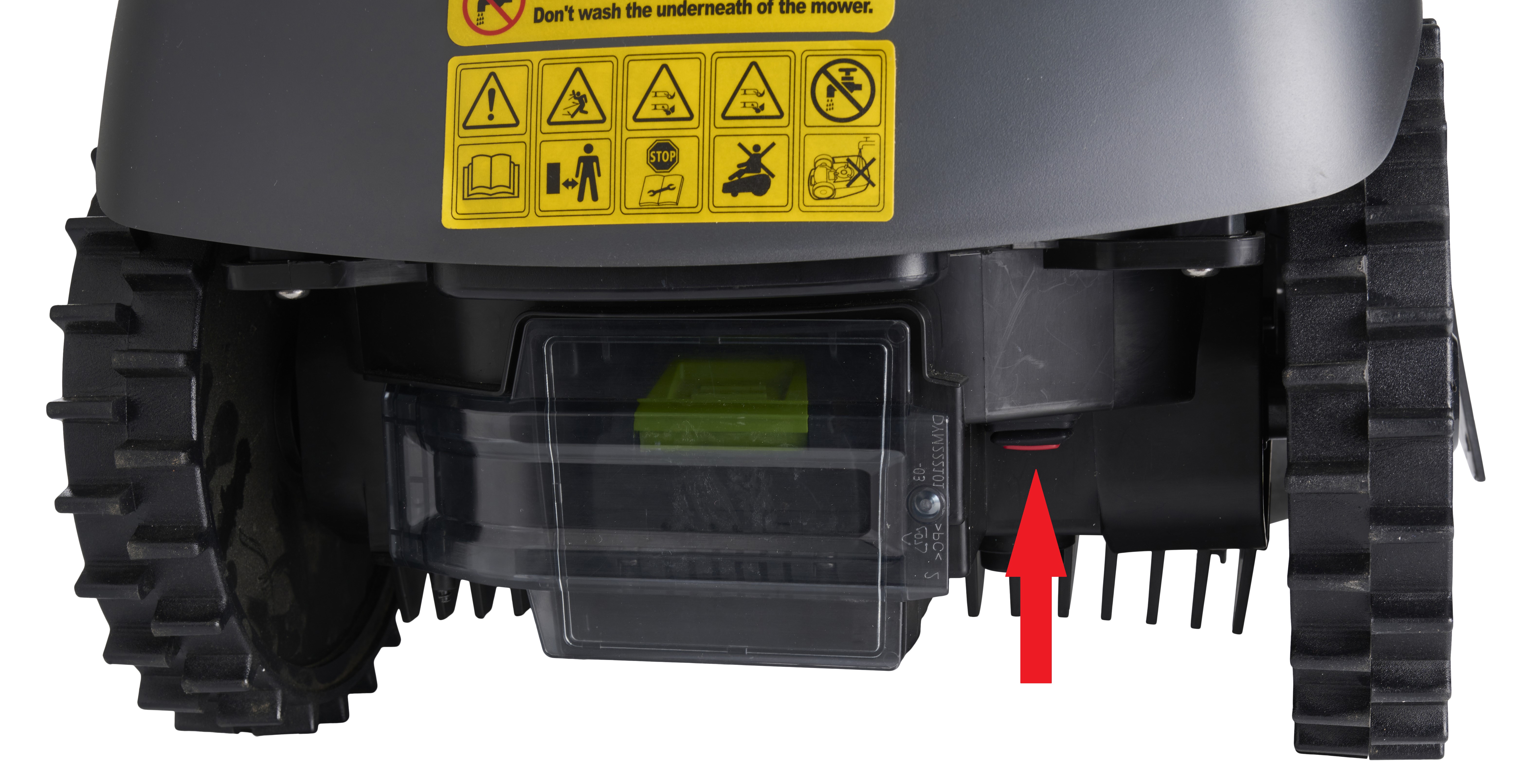

Set the main switch to the "ON" position, which is when the button is pressed up in the machine

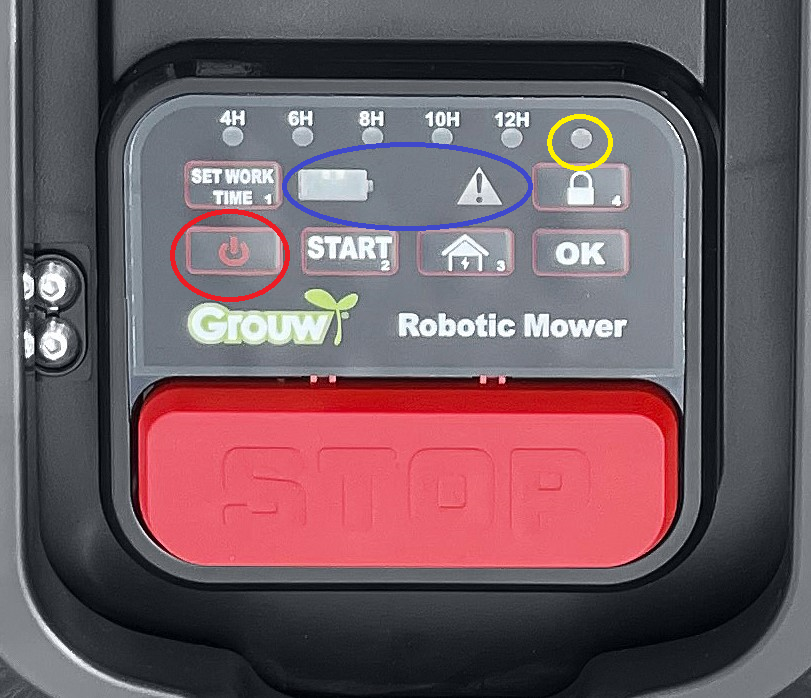

Hold the "POWER" button down (red circle in the image). The on/locked indicator lights up red (yellow circle in the image), and the battery and error indicators flash alternately (blue circle in the image). The robotic lawn mower is ready after about 4 seconds.

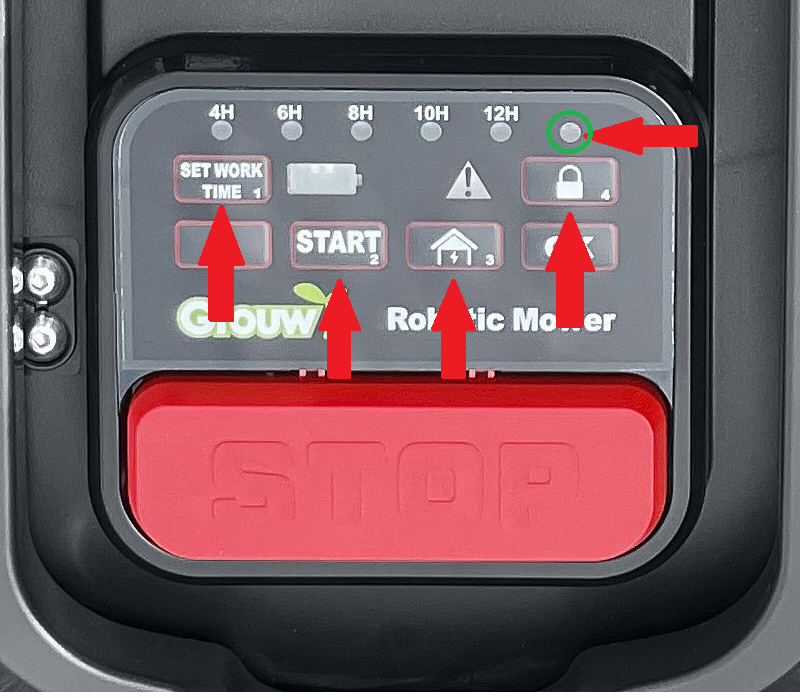

Enter the four-digit PIN code using the "1-4" buttons, and then press the "OK" button to unlock the control panel. If you have entered the correct PIN code, the on/locked indicator lights up green. If you have entered an incorrect PIN code, the on/locked indicator flashes red. Enter the correct PIN code. Press the "OK" button
Note! The PIN code is set from the factory to the combination 1-2-3-4. You can create your own PIN code - see the section - Change the PIN code in the manual

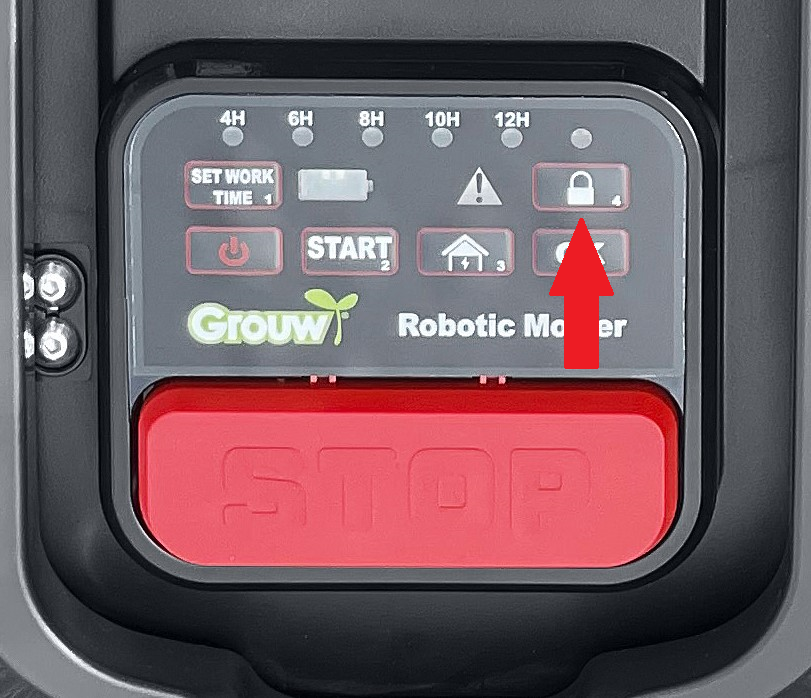

If you want to lock the control panel, press the "LOCK/4" button.

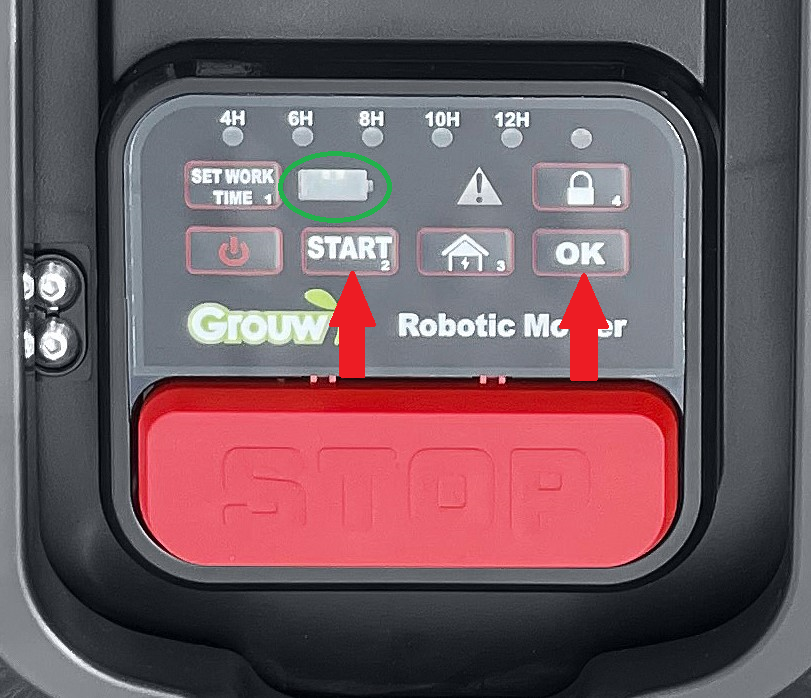

Press the "START/2" button, and then press the "OK" button. If the battery level is above 30%, the battery indicator lights up green, and the robotic lawn mower begins to cut the grass.
If the battery level is at 30% or less, the battery indicator lights up red, and the robotic lawn mower automatically returns to the charging station along the boundary wire.

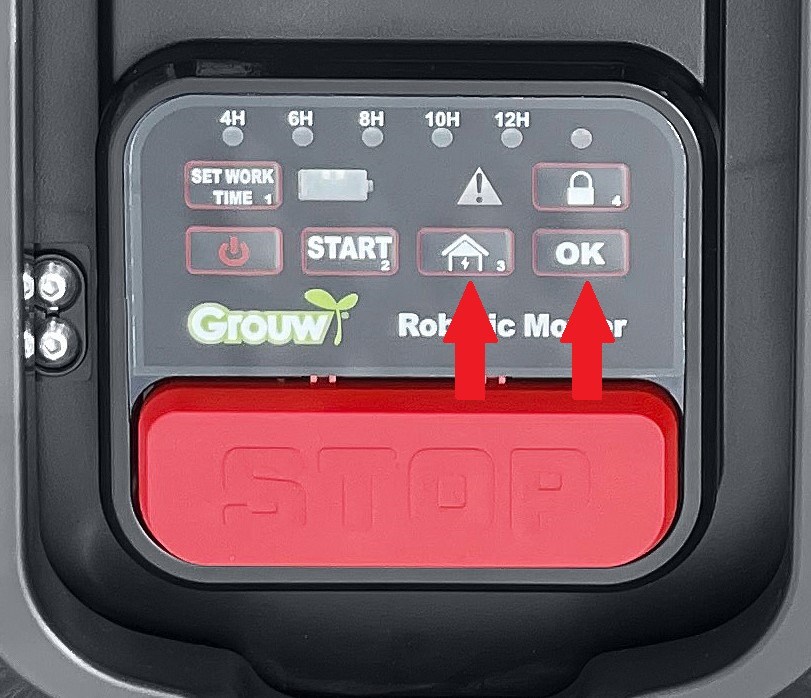

If you press the "HOME/3" button and then press the "OK" button, the robotic lawn mower will return to the charging station, regardless of the remaining battery capacity. If it is within the mowing time, it will charge and go out again. If you press the red STOP button, the robotic lawn mower stops immediately.
