Multizone Function.
How to connect your robotic lawnmower to your smartphone or tablet:
- Connection via Bluetooth:
-
- Open the app on your smartphone or tablet.
- Connect the robotic lawnmower via Bluetooth.
-

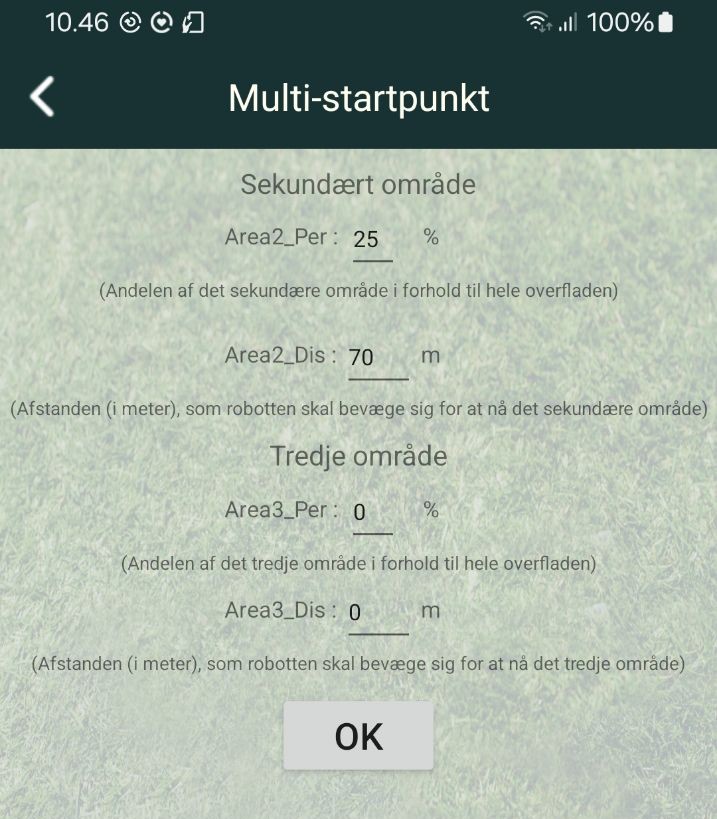

- Setting the multizone function:
-
- Area2_Per: Set how much zone 2 constitutes of the total area of the lawn.
- Area2_Dis: Specify how many metres the robotic lawnmower should follow the boundary wire before it reaches zone 2. Measure the boundary wire halfway into zone 2 for accuracy.
- Area3_Per and Area3_Dis: Set in the same way for zone 3.
-
Example:
- Total area of the lawn: 500 m²
- Zone 1 (primary): 250 m²
- Zone 2: 150 m²
- Zone 3: 100 m²
Setting the multizone function:
- Zone 1: 50% (5 out of 10 times, mowing starts directly from the charging station).
- Zone 2: 30% (3 out of 10 times, it runs 40 metres along the boundary wire and starts in zone 2).
- Zone 3: 20% (2 out of 10 times, it runs 65 metres along the boundary wire and starts in zone 3).
Note: The robotic lawnmower does not mow the entire zone 1 before it runs to zone 2 if the starting point is in zone 2 or 3.
Edge mowing along the boundary wire:
The robotic lawnmower is factory programmed to automatically run along the boundary wire and mow the grass once a week.
