1. Placement of the charging station:
- Choose a location close to an outdoor socket.
- Ensure that the location is directly connected to the lawn and that the area is free of ant hills and similar.

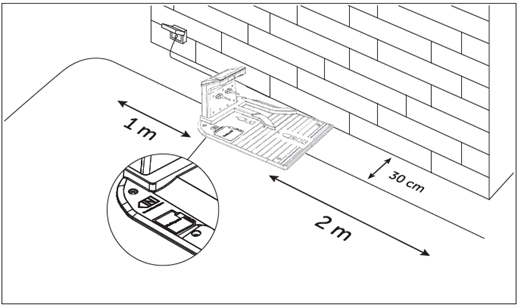

- The installation site must be level, dry, and free of obstacles (2 metres in front and 1 metre behind the charging station).
- Avoid corners to prevent the robotic lawn mower from getting stuck.
- Place the charging station in the shade to protect the battery from direct sunlight.

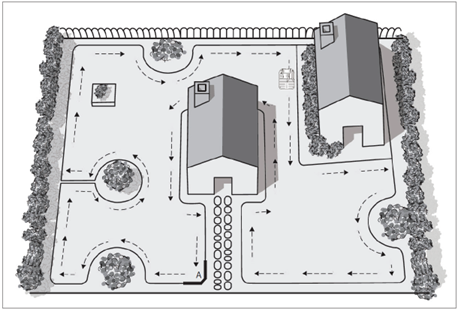

- Once you have found a suitable installation site for the charging station, secure the boundary wire with a plastic peg, which you drive into the lawn with a rubber mallet.

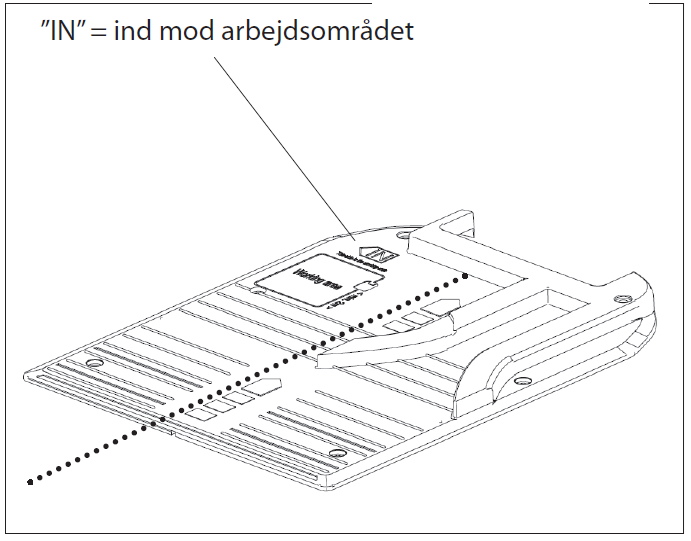

- The charging station should be positioned so that the label "IN" faces towards the work area.
2. Securing the boundary wire:
- Secure the boundary wire with plastic pegs and a rubber mallet.
- The wire should be routed under the charging station and secured in the groove on the underside of the charging plate.
- Strip the ends of the wire (10-15 mm of conductor).

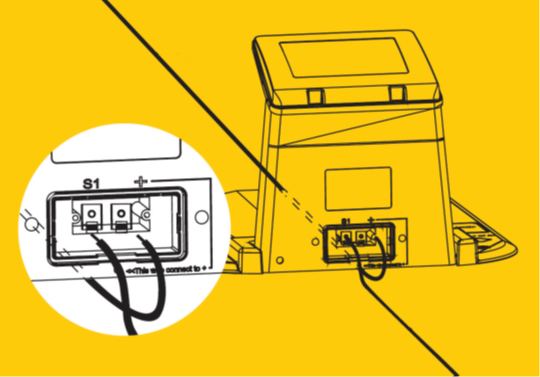

- Connect the wire that goes under the charging station to the red terminal marked with “+”.
- Connect the other wire to the black terminal marked with “S1”.

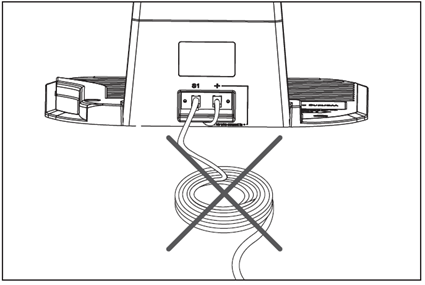

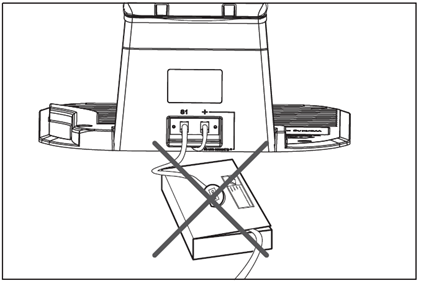

Note! Excess boundary wire must not be placed behind the charging station!
