1. Placement of the Charging Station:
- Choose a location close to an outdoor socket.
- Ensure that the location is in direct connection with the lawn and that the area is free of ant nests and similar.

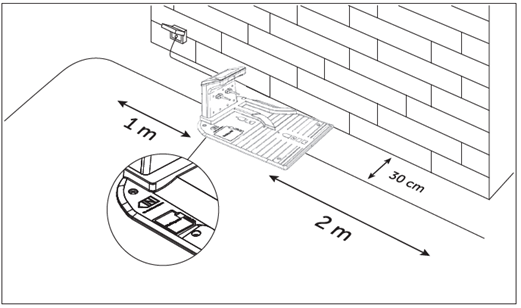

- The installation site must be level, dry, and free of obstructions (2 metres in front and 1 metre behind the charging station).
- Avoid corners to prevent the robotic lawn mower from getting stuck.
- Place the charging station in the shade to protect the battery from direct sunlight.
- Once you have found a suitable installation site for the charging station, secure the boundary cable with a plastic peg, which you drive into the lawn with a rubber hammer.

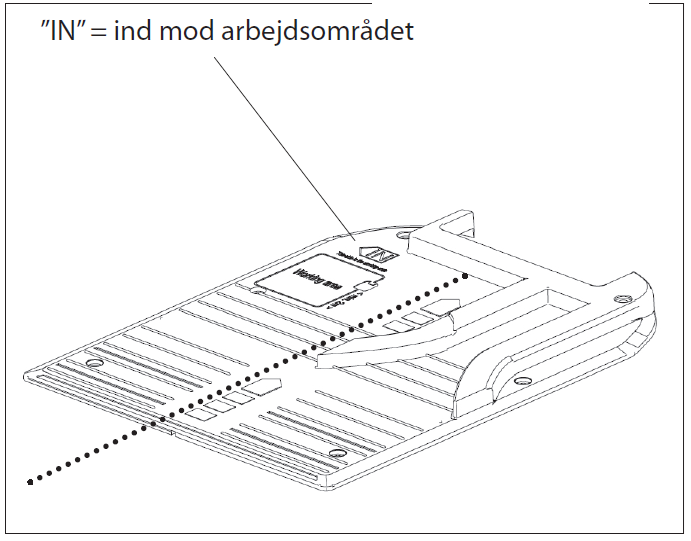

- The charging station should be positioned so that the label “IN” faces towards the working area.
2. Securing the Boundary Cable:
- Secure the boundary cable with plastic pegs and a rubber hammer.
- The cable must be routed under the charging station and secured in the groove on the underside of the charging plate.
- Strip the ends of the cable (10-15 mm of conductor).

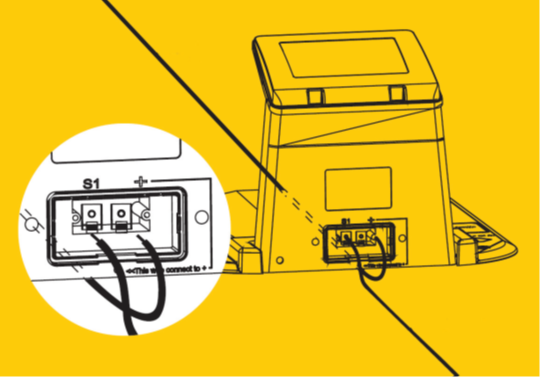

- Connect the cable that goes under the charging station to the red terminal marked with “+”.
- Connect the other cable to the black terminal marked with “S1”.

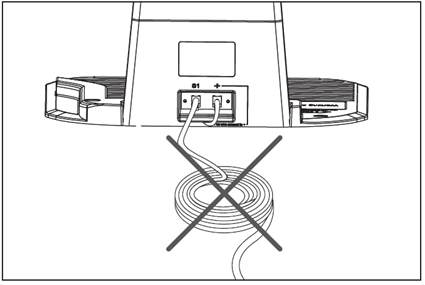

Note! Excess boundary cable must not be placed behind the charging station!
